Product details:

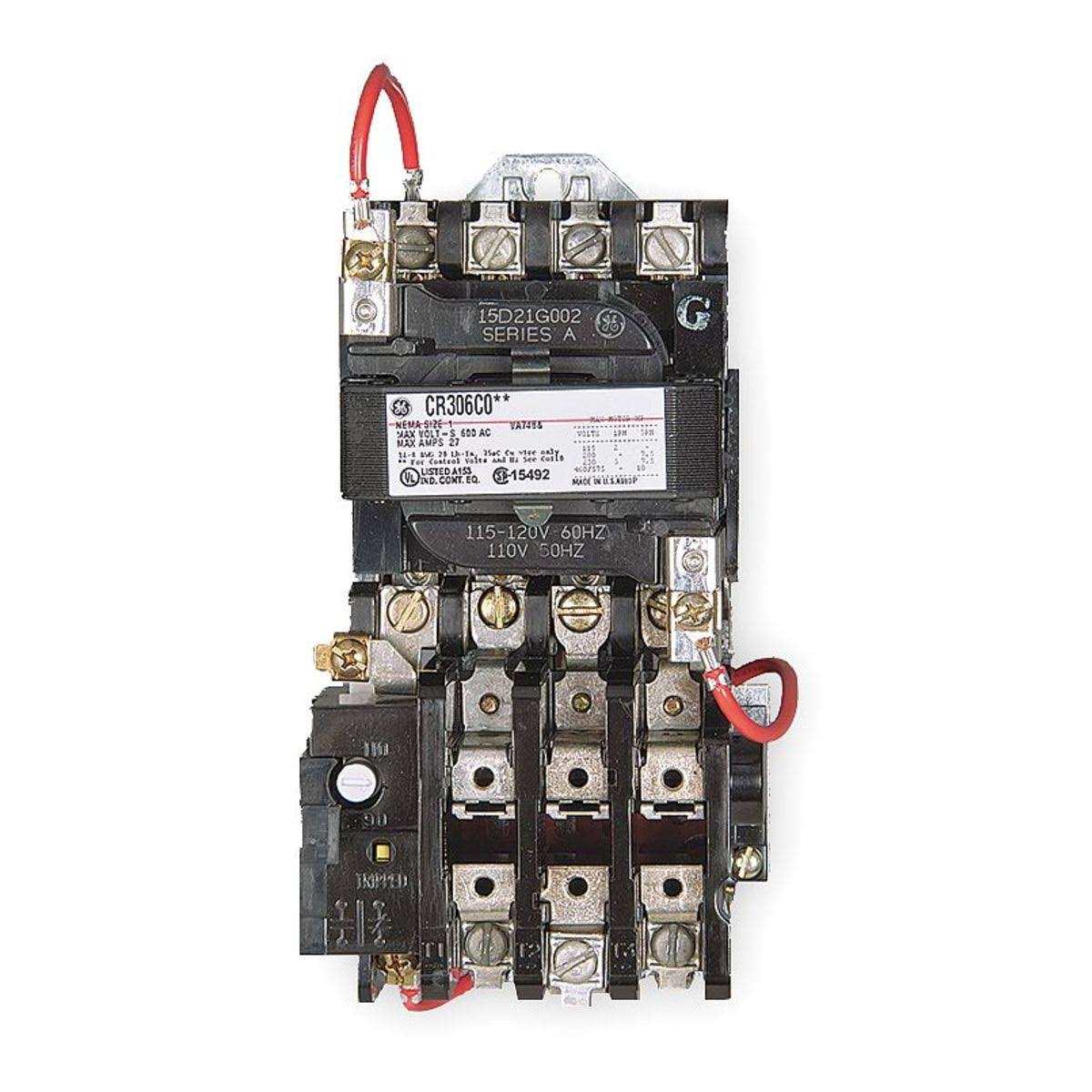

GE 3-Pole Non-reversing non-combination full voltage magnetic starter has current rating of 18 Amps and voltage rating of 600 Volts at 50/60 Hz. It measures 7.8 Inch x 3.71 Inch x 3.94 Inch. Din-rail mountable starter has coil voltage rating of 115 - 120 Volts. Staggered arrangement makes wiring easier and prevents shorting between phases. It offers Class 20 overload protection. Visual trip indicator with manual reset avoids surprise restarts effectively. Reset occurs on arm upstroke so a tripped condition cannot be overridden by holding the arm down. This NEMA size 0 starter features 1 NO and 1 NC auxiliary contact configuration and saddle clamp terminal connection. Starter has temperature range of -20 to 70 deg C. It is suitable for starting full voltage, single-speed AC motors up to 1600 hp and offers immense protection to the motor against running or stalled overloads.
